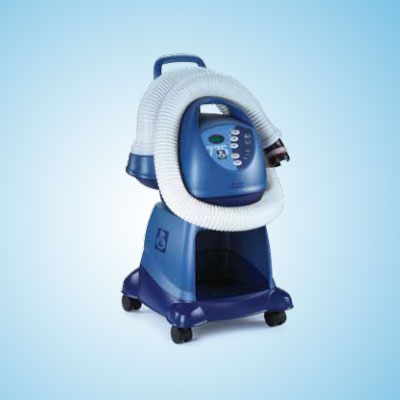

3M™ Bair Hugger™ Therapy Temperature Management Unit Model 775

Features

  • Four temperature settings allow clinicians to deliver effective forced-air patient warming and cooling therapy. The ambient setting can complement your current patient cooling strategies.
  • Three temperature sensors and adjustable airflow provide safe, quick temperature response.
  • The Model 775 can track and report information on forced-air warming duration, over-temperature conditions and fault codes, all of which are accessible via the front panel – there’s no need to open the unit.
  • Accessories for the Model 775 warming unit allow the unit to be mounted on a hard surface, an IV pole, bed rail or rolling cart.

Description

Forced-air warming was introduced to the world in 1987 with the launch of Bair Hugger therapy. Since that time, Bair Hugger warming units and blankets have safely and effectively warmed more than 135 million patients worldwide. Our latest advancement in forced-air warming – the 3M™ Bair Hugger™ Model 775 temperature management unit – offers two airflow settings, hose-end temp sensing, precise temperature delivery and ease of use from a single, quiet warming unit. It’s also compatible with all Bair Hugger blanket styles – pediatric to adult – and 3M™ Bair Paws™ gowns.

Additional information

Dimensions

13"h × 14"w × 13"d (33h × 35w × 33d cm)

Weight

16 lb (7.3 kg)

Operating Temperatures

High: 43° ± 1.5°C (109.4° ± 2.7°F)
Med: 38° ± 1.5°C (100.4° ± 2.7°F)
Low: 32° ± 1.5°C (89.6° ± 2.7°F)
Ambient: (Room Temperature)

Fan Speeds and Relative Noice

High Fan Setting: 37 CFM (17.5 L/s) 53 dBA
Low Fan Setting: 32 CFM (15.1 L/s) 48 dBA

Leakage Current

Meets UL 60601-1 and IEC 60601-1 requirements.
CAN/CSA-C22.2, No. 601.1

Safety Systems

Audible and visual alarms;
Over-temperature ≤56°C, 53°C ± 3°C typical

Filter

High-efficiency 0.2 μm filter

Device Ratings

110-120 VAC, 50/60 Hz, 11.7 Amperes
220-240 VAC, 50/60 Hz, 7.2 Amperes
100 VAC, 50/60 Hz, 14.5 Amperes

Compatibility

Use only with Bair Hugger blankets and Bair Paws gowns

Accessories

Rolling cart, bed rail mount, accessory handle and teathered clip also available
